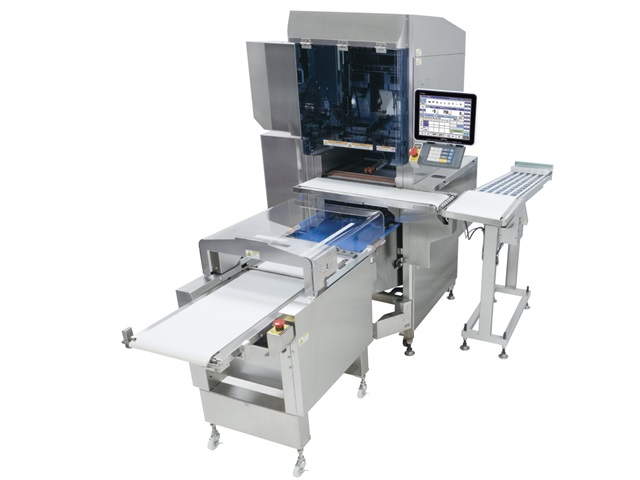

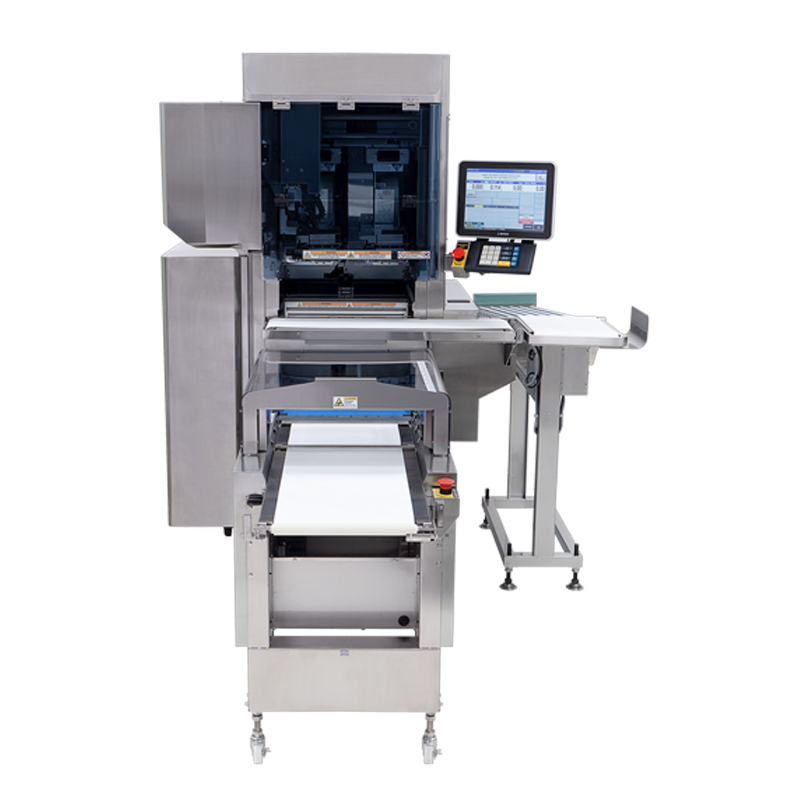

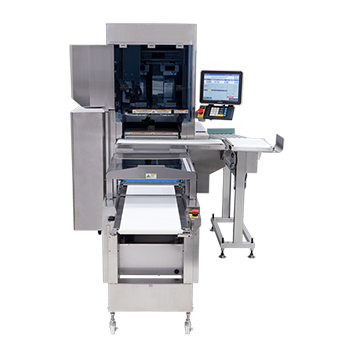

WM-AI AS2 JRP + PS AI wrapper

	WM-AI AS2 JRP + PS AI wrapper

ISHIDA DISTRIBUTOR

HELMAC is the official distributor of the 'WM-NANO' and 'WM-AI' retail scales and packaging machines manufactured by ISHIDA, a Japanese company and world leader in the field of automatic scales and packaging machines.

Certificate

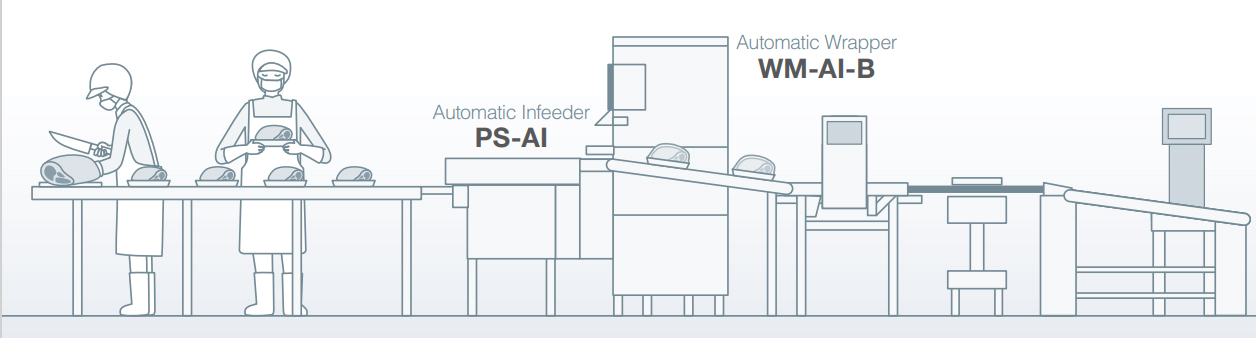

Automatic packaging machine that provides the complete packaging and labelling solution in the production line, helping to minimise downtime. Automatic tray infeed, weighing, packaging and labelling in one compact solution. Modifiable output direction allows adaptation to all types of production lines.

Trays

Up to 35 trays per minute;
Automatic identification;
Automatic centring;
Variable loading speed;
2 film reels with automatic selection of the film to be used;
Automatic infeed conveyor for products to be packed, which can be integrated into the packaging line;

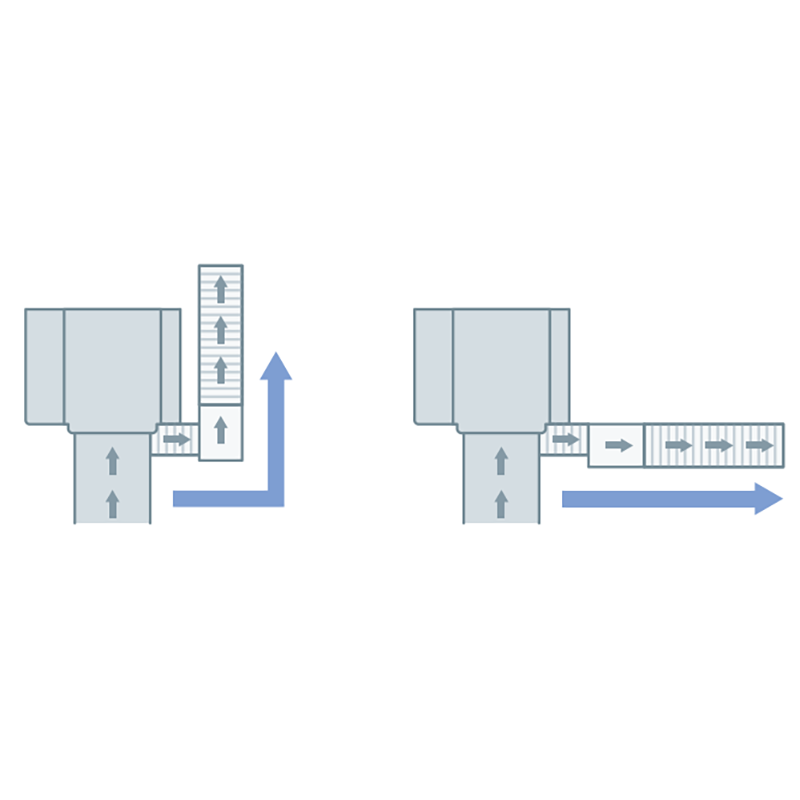

Automatic outfeed roller conveyor for the packaged product with adjustable angle and height (exit 180° or 90°).

Display and keyboard

12-inch touch-screen display;
Adjustable touch viewing angle;
Waterproof 19-key keypad.

Labelling

Label printer with 3” printhead for labels with a 76mm inner core
Robotised label applicator with selectable position and angle
Second labeling printer for 3” promotional stamps for labels with 76 mm inner core
POP applicator of pre-printed or printable promotional labels
Fully configurable layout

Weighing

Dual-range (3-6 Kg x 1 g).

Other

Memory 2 GB
Can be connected to the main management softwares available on the market.

DOWNLOAD

TECH_DRAWING_WM_AI_AS2_JRP_PS_AI.pdf

Available versions

	Code	Description
	600008-S	ISHIDA WM-AI AS2 JRP + PS AI automatic wrapper with In-feed Conveyor. It packs up to 35 trays per minute. Equipped with 2 film reels with automatic selection of the film to be used, automatic output roller conveyor for the packaged product, double labelling printer with 3" head, linerless paper cutter under the package and robotized label applicator with selectable position and angle.

Compatible Label Rolls and Accessories

	Code	Description
	880055	Pack of 10 rolls of labels 58x60 internal hole 76mm, external diameter 175mm - roll of 2000 labels
	880074	Pack of 10 rolls of labels 58x74 internal hole 76mm, external diameter 209mm - roll of 2500 labels

Approval for sale to third parties

	Code	Description
	ECEMID51	MIDR51 approval for automatic instrument with STOP and GO. NET €

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
