HELMAC is the official distributor of the "WM-NANO" and "WM-AI" retail scales and packaging machines manufactured by ISHIDA, a Japanese company and world leader in the field of automatic scales and packaging machines.

Certificate

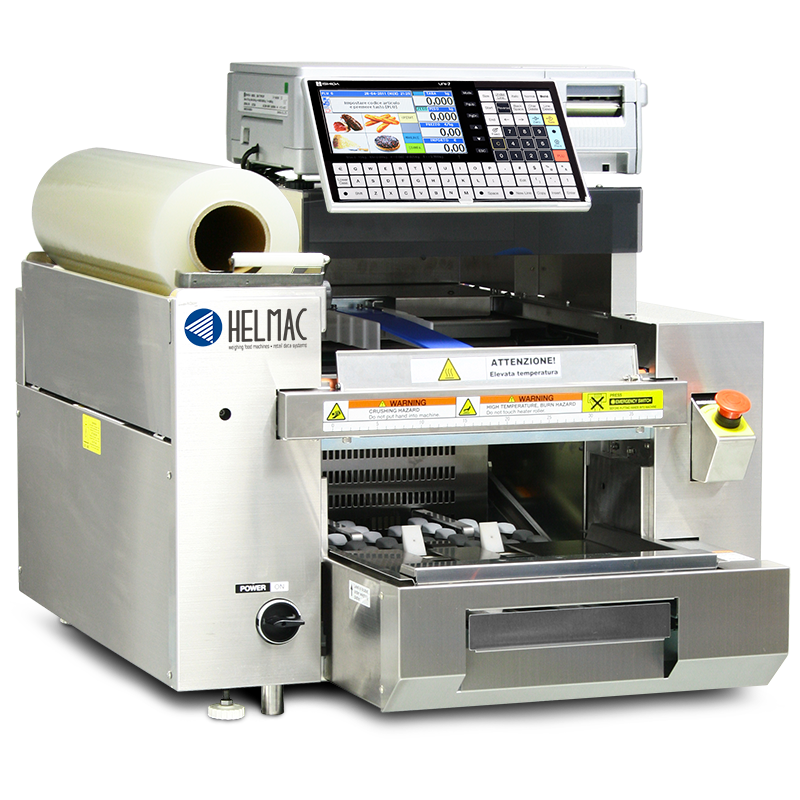

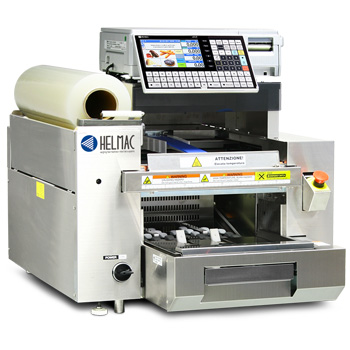

Ishida's extremely compact and robust semi-automatic packaging machine. The Ishida Nano is a unique machine in that it includes the weighing, packaging and labelling part all in one. Due to its size, it is particularly suitable for supermarkets and production facilities.

TECHNICAL SPECIFICATIONS

Packets per minute: up to 16.
Package capacity: 20 - 3500g.
Capacity: 40 - 15000g.
Package size:
Depth: 127 to 254mm base footprint 80mm
Width: 150 to 350 mm base imprint 120 mm
Height: 10 to 130mm
Tray height: 45mm
Note: It is not possible to set all maximum dimensions at the same time in the machine.
Trays: PSP, PP.
Type of film: POLYETHYLENE or PVC.
Film size: 400 - 450 - 500 - 550 - 560 mm. Max. Ø: 200 mm.
Power supply: Voltage from 220 to 240V
Frequency 50/60Hz.
Working temperature: from 5°C to 40°C.
Humidity: 20% to 85% R.H.
Weight: Packaging machine with scale 100 kg.
Direct thermal printer/labeller, resolution 8dots/mm, speed up to 150mm/sec; equipped with rewinder and label pick-up sensor.
Supports normal thermal paper, adhesive and labels.
Label size::
Width 30 to 60mm;
Length from 20 to 150mm;
Outer roll diameter up to 100mm.
Compact dimensions::

MAIN FUNCTIONS

Packaging of trays of different sizes and shapes.

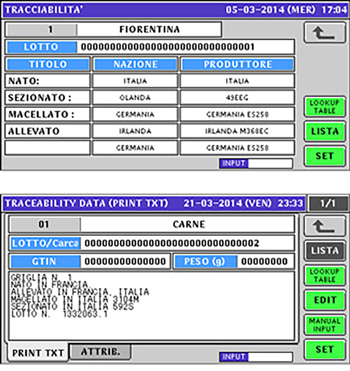

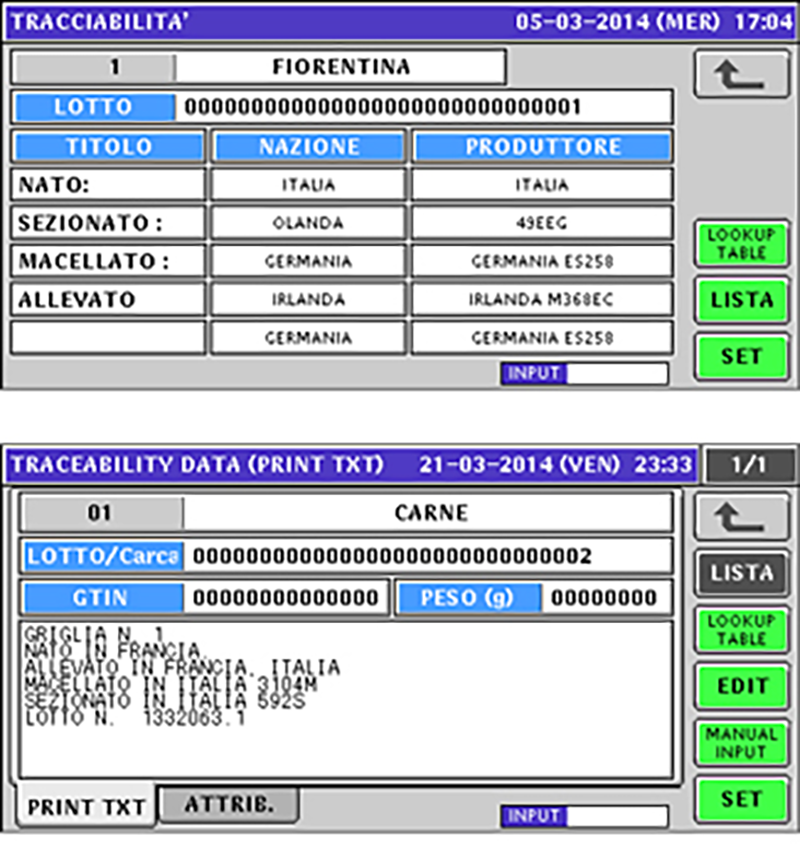

Management of the traceability of all products also by barcode.
Working mode easily selectable between: simple labelling, simple packaging, packaging + labelling.
Tray feeding and packaging: automatic when stable weight is reached, manual by the operator.

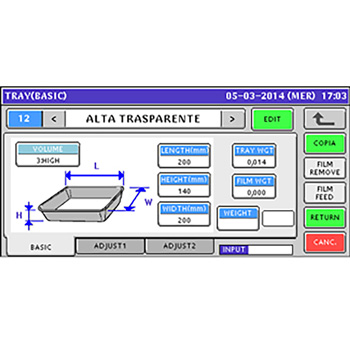

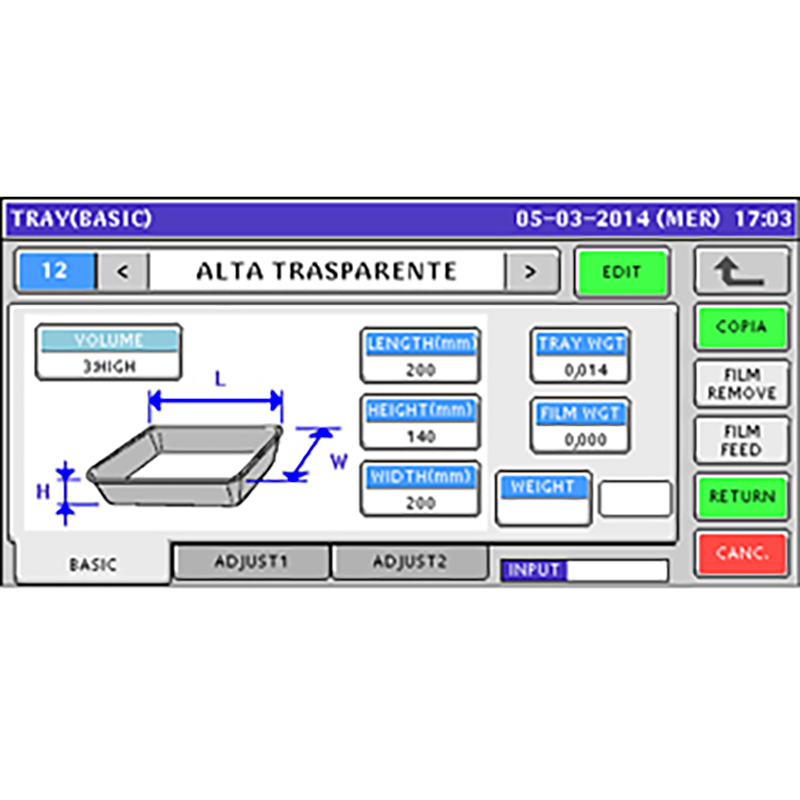

Configuration of different tray formats and label layouts, assignable to PLUs.
Quick and easy film roll replacement.
Sealing system by means of horizontal heat sealing bar.
Connectable with PC and scales via Ethernet network.

ACCESSORIES

Trolley 670x670mm, height 630mm, stainless steel.
