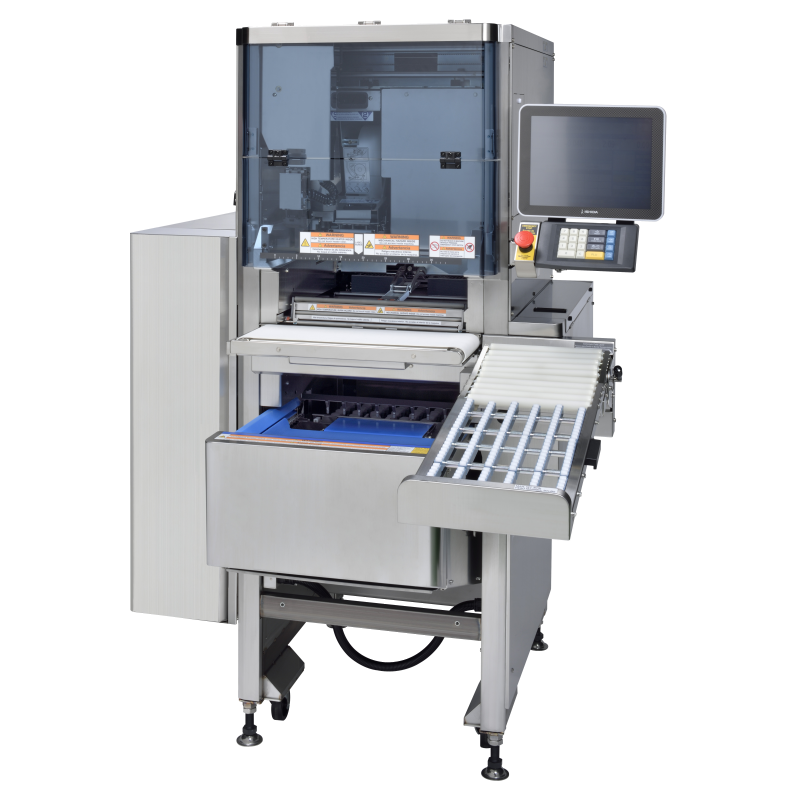

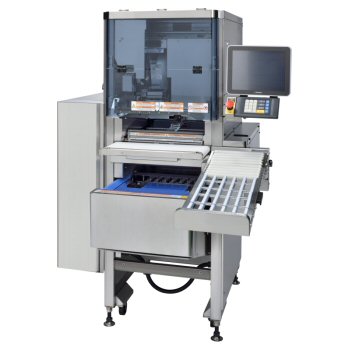

WM-AI AT2 JR wrapper

	WM-AI AT2 JR wrapper

ISHIDA DISTRIBUTOR

HELMAC is the official distributor of the 'WM-NANO' and 'WM-AI' retail scales and packaging machines manufactured by ISHIDA, a Japanese company and world leader in the field of automatic scales and packaging machines.

Certificate

Automatic wrapper that in one solution weighs, packages and labels up to 35 packs per minute. Its compact dimensions make it a particularly suitable solution for the delicatessen, butcher's and fruit and vegetable departments of major supermarkets.

Trays

Up to 35 trays per minute;
Automatic identification;
Automatic centring;
Variable loading speed;

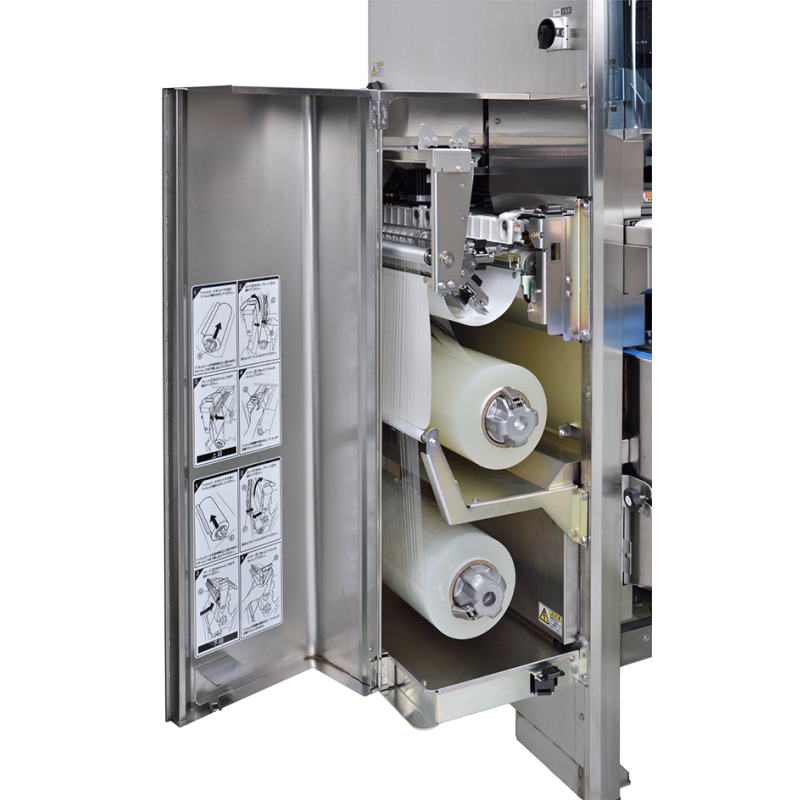

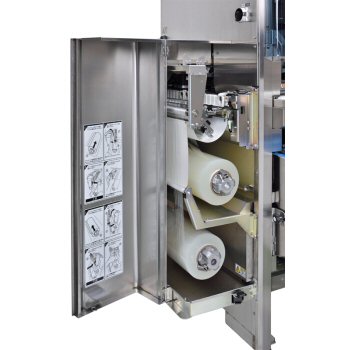

2 film reels with automatic selection of the film to be used;
Automatic outfeed roller conveyor for the packaged product.

Display and keyboard

12-inch touch-screen display;
Adjustable touch viewing angle;
Waterproof 19-key keypad.

Labelling

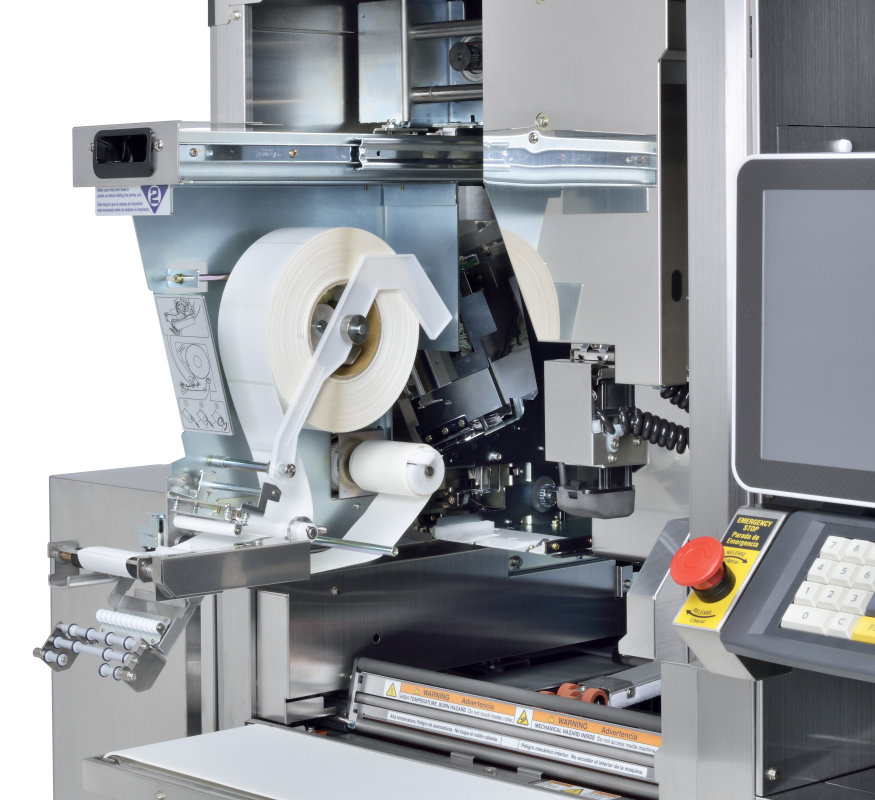

Label printer with 3” printhead for labels with a 76mm inner core;
Second printer for different layout;

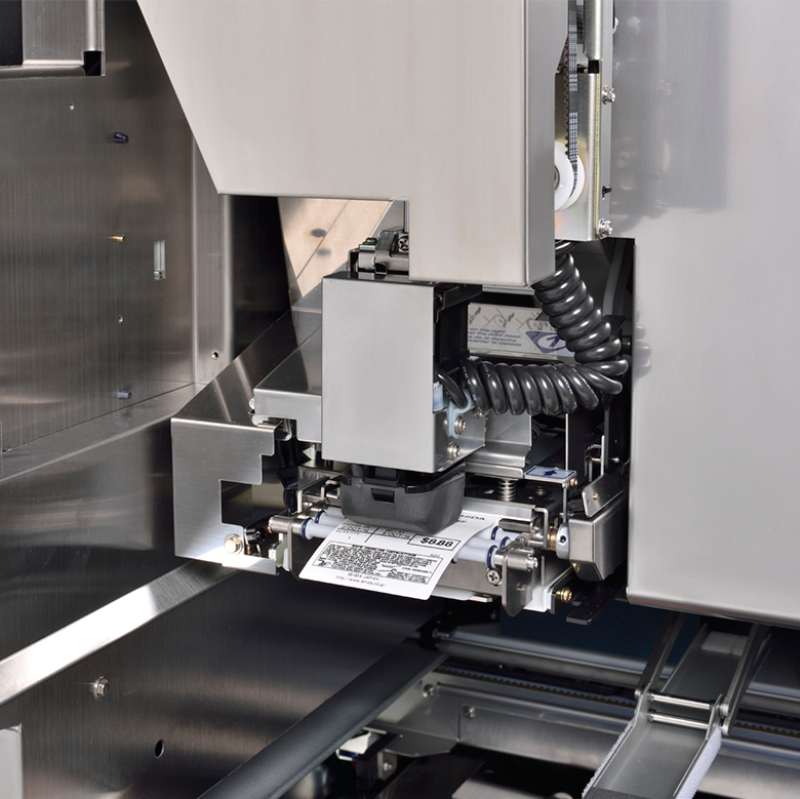

Robotised label applicator with selectable position and angle;
Fully configurable layout.

Weighing

Dual-range (3-6 Kg x 1 g).

Other

Memory 2 GB
Can be connected to the main management softwares available on the market.

DOWNLOAD

TECH_DRAWING_WM_AI_AT2_JR.pdf

Available versions

	Code	Description
	600004-S	ISHIDA WM-AI AT2 JR automatic wrapper. It packs up to 35 trays per minute. Equipped with 2 film reels with automatic selection of the film to be used. Automatic exit roller conveyor for the packaged product. Double labelling printer with 3" head. Robotic label applicator with selectable position and angle.

Compatible Label Rolls and Accessories

	Code	Description
	880055	Pack of 10 rolls of labels 58x60 internal hole 76mm, external diameter 175mm - roll of 2000 labels
	880074	Pack of 10 rolls of labels 58x74 internal hole 76mm, external diameter 209mm - roll of 2500 labels

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
