Ishida wrapping machines

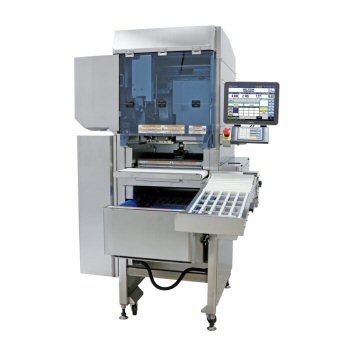

WM-AI AS2 JRP wrapper


  WM-AI AS2 JRP wrapper

ISHIDA DISTRIBUTOR
  • HELMAC is the official distributor of the 'WM-NANO' and 'WM-AI' retail scales and packaging machines manufactured by ISHIDA, a Japanese company and world leader in the field of automatic scales and packaging machines.

    Certificate
Automatic wrapper that in one solution weighs, packages and labels up to 35 packs per minute. Its compact dimensions make it a particularly suitable solution for the delicatessen, butcher's and fruit and vegetable departments of major supermarkets.

Trays

  • Up to 35 trays per minute;
  • Automatic identification;
  • Automatic centring;
  • Variable loading speed;
  • 2 film reels with automatic selection of the film to be used;
  • Automatic outfeed roller conveyor for the packaged product.

Display and keyboard

  • 12-inch touch-screen display;
  • Adjustable touch viewing angle;
  • Waterproof 19-key keypad.

Labelling

  • Label printer with 3” printhead for labels with a 76mm inner core
  • Robotised label applicator with selectable position and angle
  • Second labeling printer for 3” promotional stamps for labels with 76 mm inner core
  • POP applicator of pre-printed or printable promotional labels
  • Fully configurable layout
Weighing
  • Dual-range (3-6 Kg x 1 g).
Other
  • Memory 2 GB
  • Can be connected to the main management softwares available on the market.
DOWNLOAD
Available versions
 CodeDescription
600003-S ISHIDA WM-AI AS2 JRP automatic wrapper. It packs up to 35 trays per minute. Equipped with 2 film reels with automatic selection of the film to be used. Automatic exit roller conveyor for the packaged product. Labelling printer with 3" head. Robotic label applicator with selectable position and angle. POP applicator for promotional labels.
Compatible Label Rolls and Accessories
 CodeDescription
880055 Pack of 10 rolls of labels 58x60 internal hole 76mm, external diameter 175mm - roll of 2000 labels
880074 Pack of 10 rolls of labels 58x74 internal hole 76mm, external diameter 209mm - roll of 2500 labels

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
