WM-MICRO Wrapping Machine by ISHIDA

	WM-MICRO Wrapping Machine by ISHIDA

ISHIDA DISTRIBUTOR

HELMAC is the official distributor of the "WM-NANO" and "WM-AI" retail scales and packaging machines manufactured by ISHIDA, a Japanese company and world leader in the field of automatic scales and packaging machines.

Certificate

ACCESSORIES

Trolley 670x670mm, height 630mm, stainless steel.

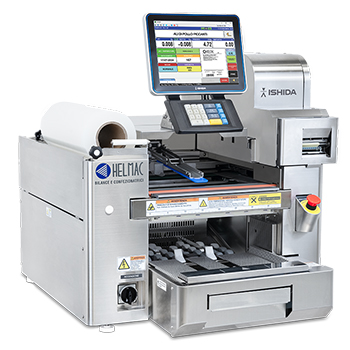

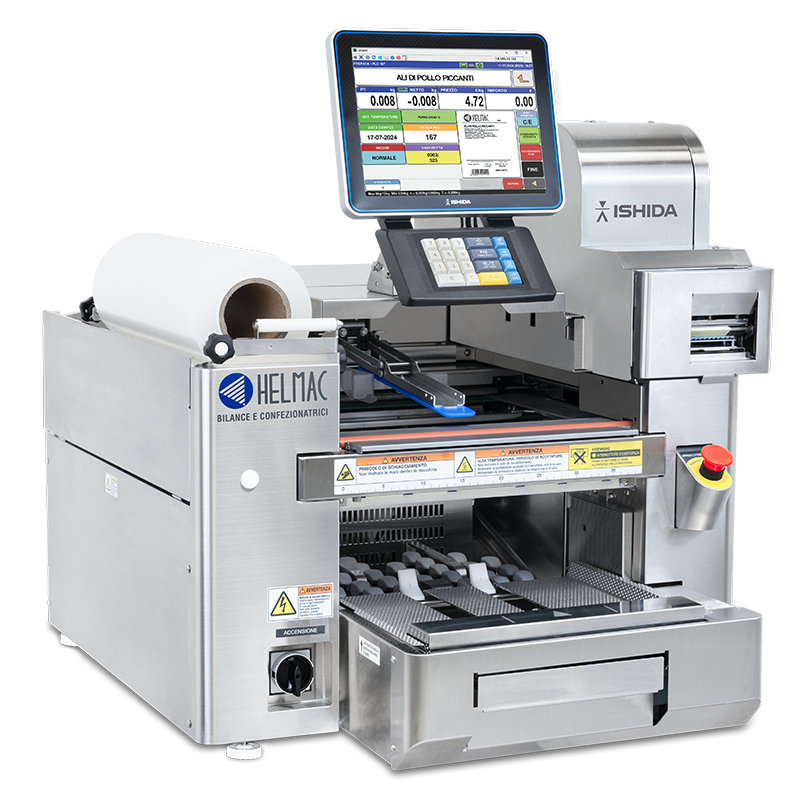

A new-generation semi-automatic table-top wrapping machine, characterised by its small footprint. The design and advanced functions are designed to simplify and speed up the operator's work. The 12" touch screen display and mechanical keyboard make operation extremely intuitive for the user. New 300dpi printer at 150mm/sec guarantees labels with a very high print quality. Easy machine cleaning thanks to stainless steel body and removable parts.

TECHNICAL SPECIFICATIONS

Capacity: Dual-range (6-15kg x 2-5g)
Wrapping capacity: Up to 3,5kg
Trays per minute: Up to 16
Wrapping dimensions:
- Width: 150-350mm
- Depth: 127-244mm
- High: 10-130mm
Tray type: PSP, PP, PET, Paper
Label roll size: Ø 125mm
Inner roll dimensions: Ø 40mm
Film: 1 reel of 400mm, 450mm and 500mm
Printhead: 3" direct thermal, 12dots/mm
Print speed: 150 mm/sec
Linerless printer: Optional
Display: Backlit, 12", colour LCD
Touch keys: 19 keys
Power supply: 220-240 Vac, 50Hz
Consumption:
- In use: Max. 1200w
- Standby: 200w
Working temperature: +5°C...+40°C
Humidity: 20-85%RH (without condensation)

Compatible with leading back-office systems on the market

MAIN FEATURES

Weights/wraps/labels up to 16 pieces per minute
3" 300dpi labeller printer
Selectable working modes:
- Only wrapping
- Only printing
- Wrapping+ printing
12" touch screen display with adjustable viewing angle
19-key mechanical keyboard

DOWNLOAD

HL_WM-MICRO-EN_bassa.pdf	USER_MAN_WM-MICRO_Ishida_2rev.pdf
TECH_DRAWING_WM_MICRO.pdf

Available versions

	Code	Description
	600014	WM-MICRO semi-automatic table-top supermarket packaging machine, dimensions 770x740x850mm.

Available accessories

	Code	Description
	767132	Stainless steel trolley for wrapping machine, with dimensions 670x670mm and height 630mm. Complete with wheels for handling and support feet.
	767134	Price demo day at customer's premises after analysis
	767151	Plexiglas film protection
	810241	Bench label dispenser

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
