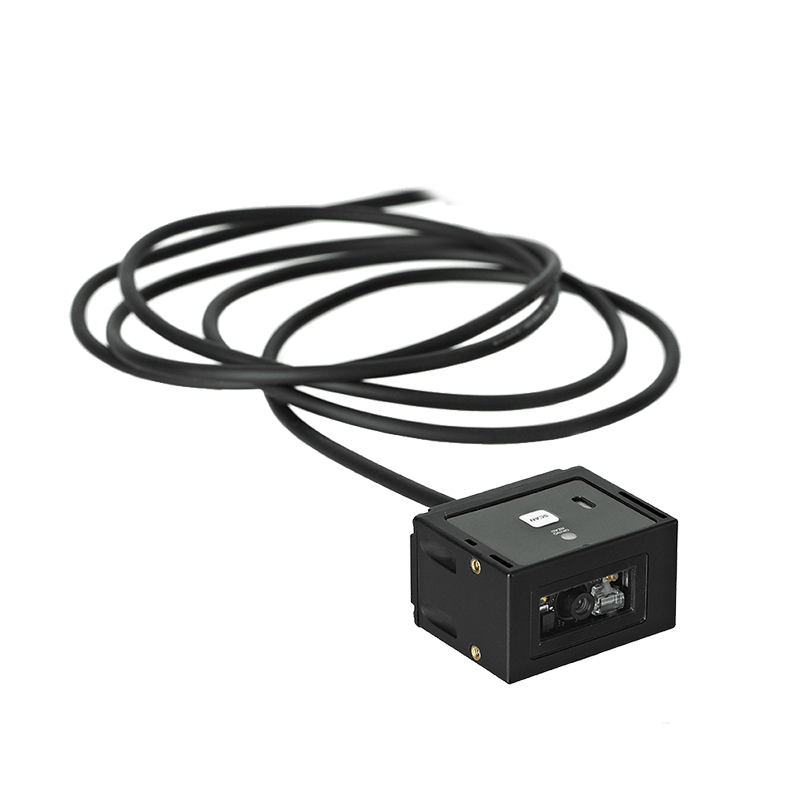

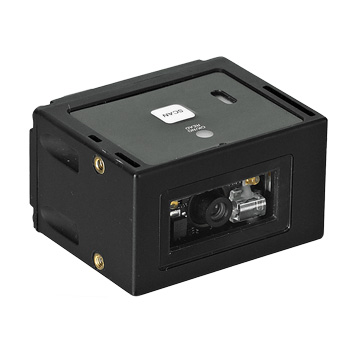

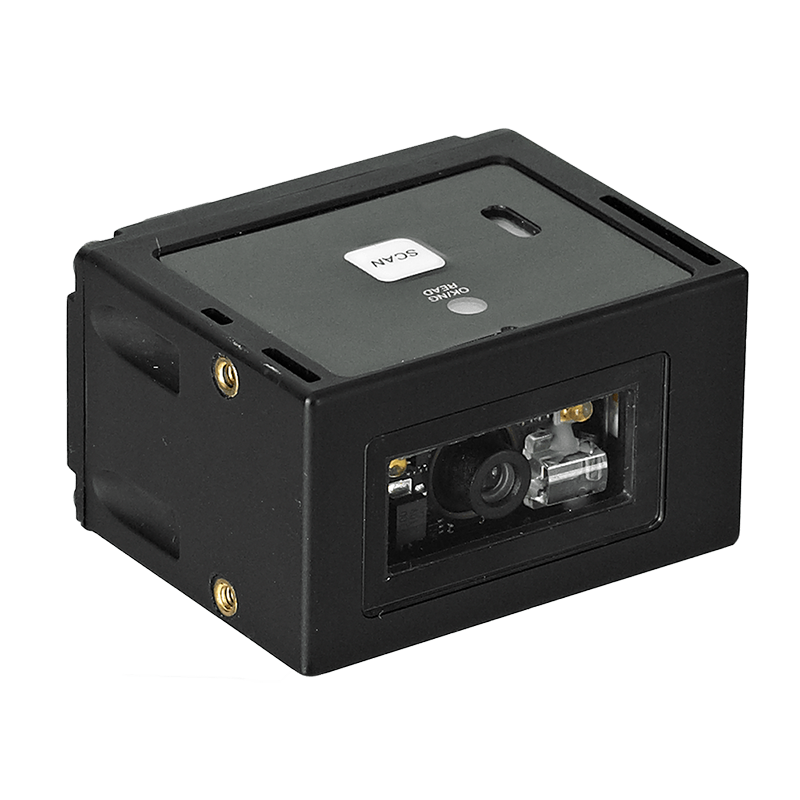

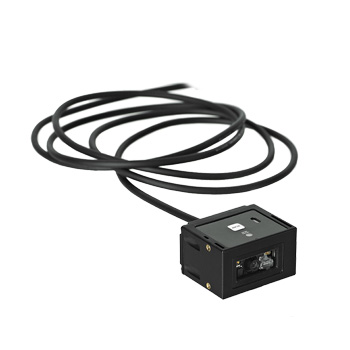

Barcode reader 2d compact HL3101


  Barcode reader 2d compact HL3101

Is developed for the most demanding applications that require the possibility to execute the 1D and 2D fast scanning.

FEATURES

  • Equipped with USB HID / VCP or whit a serial interface.
  • The small size of just 41,1 x 33 x 24 mm, are perfect for the most common applications.
  • Scanning 1D and 2D.
  • Compact design.
  • flexible assembly.
  • Scanning speed of 60 scan per second.
  • IP65.

SUPPORTED BARCODE

  • Barcode (1D): UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13, EAN-13 Addon, EAN-8, EAN-8 Add-on, JAN-8, JAN-13, Code 39, ri-Optic,Codabar (NW-7), Industrial 2 of 5, Interleaved 2 of 5, S-Code, IATA, Code 93,Code 128, MSI/Plessey, UK/Plessey, TELEPEN, Matrix 2of5, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1-DataBar, Composite GS1-128, Composite EAN, Composite UPC Postalcode: Chinese Post, Korean Postal Authority code
  • 2D code: PDF417, MicroPDF417, Codablock F, QR Code, Micro QR Code, DataMatrix (ECC 200), MaxiCode (Modes 2 to 5), Aztec code, Chinese Sensible Code, Passport MRZ(OCR-B)
Available versions
 CodeDescription
880179 Orbital Scanner 2d of extremely compact dimensions

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
