GPE SERIES "MIT" SCALES FOR SHOPS WITH COLUMN

	GPE SERIES "MIT" SCALES FOR SHOPS WITH COLUMN

INFORMATION

Available upon request
Approval:

Stainless steel retail scales, perfect for use in shops and powered by battery. Load plate protected from impacts and display, keyboard and printer mounted on sturdy column.

FEATURES

Double display (operator and customer side) white backlit LCD, alphanumeric. Excludeable backlighting.
Double waterproof keyboard consisting of 27 PLU/functions membrane keys easily legible thanks to the special pocket and 35 mechanics with adhesive protection.
Thermal printer 80mm/sec, suitable for normal thermal paper or self-adhesive Linerless paper with 57mm width and max external diameter 50mm.
Print width up to 48mm.
Easyloading system, for easy paper loading. Logo printing function.
Stainless steel body, size 389x335x500mm (LxWxH).
Stainless steel plate 360x235mm (WxW).
230Vac power supply with internal long-lasting rechargeable battery.

FUNCTIONS

Database of 3000 PLU's, 54 with direct access.
50 PLU groups.
600 ingredient lists.
9 VAT rates.
10 advertisement messages.
Queue-system.
8 payment modes.
2 kinds of short and long term totals.
20 operators, including 8 direct.
3 programmable password levels.
Operation mode: PLU priority, single item, multi-operator tickets.
Weighing tare, operator tare, PLU tare, pre-stored and configurable tare.
Prints logos, EAN13 and EAN8 barcodes, dynamic QR codes.
Reopening of the last operator ticket, discounts, rebates, cash management, customer management.

I/O SECTIONS

2 RS232 interfaces for connection to PC, modem, scanner, Helmac cash register.
RS485 interface for connection with up to 4 scales in a local network.

DOWNLOAD

Configuration_WiFi_EN.pdf	GP-GPE_01_14.02_EN-FR-DE-ES-IT.pdf
GP_6.03_User's_Manual EN.pdf	GP-GPE_01_14.02_EN-FR-DE-ES-IT.pdf
GPE-MIT_dimensions.pdf	Last Firmware Revision News
GPEMIT_en_1309.pdf

Electronic retail scales for itinerant sales: VERSIONS

	Code	Description
	GPEMIT615	GPEMIT scale, 6/15 kg capacity, 2/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, double keyboard membrane/mechanical 62 Keys and thermal printer mounted on column.
	GPEMIT1530	GPEMIT scale, 15/30 kg capacity, 5/10 g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, double keyboard membrane/mechanical 62 Keys and thermal printer mounted on column.
	GPEMIT1230	GPEMIT scale, 12/30 kg capacity, 2/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, double keyboard membrane/mechanical 62 Keys and thermal printer mounted on column.

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Electronic retail scales for itinerant sales: COMMUNICATION INTERFACES (to be specified when ordering the scale)

	Code	Description
	810072	Ethernet interface kit for connecting the scales to the PC.
	810073	Ethernet-USB interface kit for connecting the scales to the PC and in a network.
	810183	Ethernet WIFI module to create a scale network and connect to PC.
	810184	Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max.4 scales without access point, up to 8 scales with access point).
	842527	Micro Sd for image management via Ethernet (and taxation if applicable)

Electronic retail scales for itinerant sales: OPTIONS (to be specified when ordering the scale)

	Code	Description

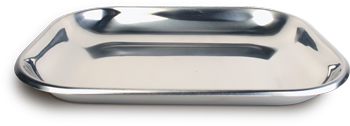

	810010	Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.
	810116	Connection for 12/24Vdc power supply for itinerant sales. Can only be ordered in combination with a scale.
	810191	Connection for 12/24Vdc power supply for itinerant sales.
	700500	Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
	700506	Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
	810161	Opening of cash register drawer.
	810232	Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.
	810171	Predisposition for connection at external platform

Electronic retail scales for itinerant sales: CABLES

	Code	Description
	806002	Ethernet shielded cable 3 m long for connection between scales.
	806005	Ethernet shielded cable 5 m long for connection between scales.
	821235	Cable 2,5m long for connecting the scale to the PC.
	841239	USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
	880155	Connection kit to external labelling machine

Electronic retail scales for itinerant sales: ACCESSORIES

	Code	Description
	840064	Stainless stess cover for printer protection against water, dust and residues of weighed products.
	880210	Laser barcode scanner
	880207	Barcode scanner 2d

Electronic retail scales for itinerant sales: EXPENDABLE MATERIALS

	Code	Description
	880042	72 rolls of Linerless thermal sticker paper 20m long, 56,5mm wide. 48,5mm outer diameter. 12mm diameter central hole.
	880043	100 rolls of thermal paper, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.
	880079	100 rolls of thermal paper, with internal thermal side, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.

Other options

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
