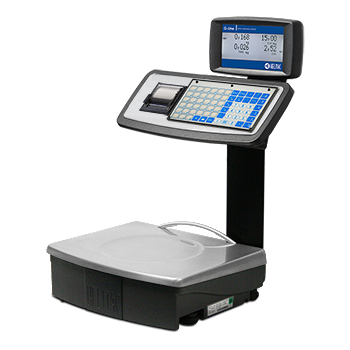

GPE SERIES "M" RETAIL SHOP SCALES

	GPE SERIES "M" RETAIL SHOP SCALES

Sturdy bench scales, perfect for all applications in the retail trade. Particularly suitable for working by battery.

FEATURES

Dual alphanumeric backlit white LCD display, operator and client side. The backlight function can be removed.
Fast, accurate, and waterproof keyboard, with 66 keys including 33 functional keys and 33 easily configurable for PLU's, TLU's and 6 additional operators.
Thermal printer speed of 80mm/sec for normal thermal paper or for Linerless adhesive with paper 57mm wide, and outer diameter max. 50mm.
Print width of up to 48mm.
System for easily loading the paper.
DIE-CAST ALUMINIUM base, stainless steel and polymer structure.
Stainless steel plate, 370x310mm (LxW) size.
230Vac power supply with long-lasting built-in rechargeable battery.

Database of 3000 PLU's, 66 with direct access.
10 PLU groups.
600 ingredient lists.
9 VAT rates.
10 advertisement messages.
Queue-system.
8 payment modes.
2 kinds of short and long term totals.
20 operators, including 8 direct.
3 programmable password levels.
Single item.
PLU priority.
Weighing tare, operator tare, PLU's tare, pre-stored and configurable tare.
Reopening of the last tickets, discounts, rebates, cash management, customer management.
Prints logos, EAN13 and EAN8 barcodes, dynamic QR codes.
Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the website.

DOWNLOAD

	Code	Description
	GPEM615	GPEM scale, 6/15kg capacity, 2/5g division, with stainless steel structure and 370x310mm plate, dual backlit LCD display on column, 66-key keyboard and thermal printer.
	GPEM1530	GPEM scale, 15/30kg capacity, 5/10g division, with stainless steel structure and 370x310mm plate, dual backlit LCD display on column, 66-key keyboard and thermal printer.
	GPEM1230	GPEM scale, 12/30kg capacity, 2/5g division, with stainless steel structure and 370x310mm plate, dual backlit LCD display on column, 66-key keyboard and thermal printer.

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Retail scales: COMMUNICATION INTERFACES (to be specified when ordering the scale - installation à l'usine )

	Code	Description
	810050	Ethernet interface kit for connecting the scales to the PC.
	810063	Ethernet-USB interface kit for connecting the scales to the PC and in a network.
	810180	Ethernet WIFI module to create a scale network and connect to PC.
	810172	Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max. 4 scales without access point, up to 8 scales with access point).
	842527	Micro Sd for image management via Ethernet (and taxation if applicable)

Bench, retail shop scales: OPTIONS (to be specified when ordering the scale)

	Code	Description
	810000	Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
	700500	Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
	700506	Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
	810252	Opening of cash register drawer.
	810116	Connection for 12/24Vdc power supply for itinerant sales. Can only be ordered in combination with a scale.
	810232	Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.
	847243	Power supply 24V, 3A for use of the scale even without batteries (to be checked according to the type of label)
	810171	Predisposition for connection at external platform
	840069	Protective treatment for use in saline and harsh environments.

Bench, retail shop scales: CABLES

	Code	Description
	806002	Ethernet shielded cable 3 m long for connection between scales.
	806005	Ethernet shielded cable 5 m long for connection between scales.
	821235	Cable 2,5m long for connecting the scale to the PC.
	841239	USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
	880155	Connection kit to external labelling machine

Bench, retail shop scales: ACCESSORIES

	Code	Description
	810106	Bracket for mounting the Lynx cash register to the column of the scale.
	880143	Plexiglas protection for scale plate.
	880207	Barcode scanner 2d
	880210	Laser barcode scanner

Bench, retail shop scales: EXPENDABLE MATERIALS

	Code	Description
	880042	72 rolls of Linerless thermal sticker paper 20m long, 56,5mm wide. 48,5mm outer diameter. 12mm diameter central hole.
	880043	100 rolls of thermal paper, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.
	880079	100 rolls of thermal paper, with internal thermal side, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.
