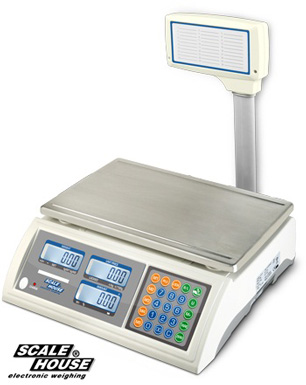

ASGP SERIES PRICE COMPUTING "RETAIL" SCALE

	ASGP SERIES PRICE COMPUTING "RETAIL" SCALE

Dual interval price computing scales with column, for commercial use. Connectable to the printer, for amount totalisation function. 105 PLU memory (5 from direct keys).

TECHNICAL FEATURES

3 backlit LCD displays on keypad on operator side and 3 LCD displays on column on customer side, with digits 20 mm high, for simultaneous indication of weight, price and amount.
Membrane waterproof numeric and functional keypad with 20 keys and acoustic feedback.
Stainless steel plate, 240 x 370 mm size.
Level and adjustable feet.
Built-in rechargeable battery (about 70h battery life) and 230 Vac power adapter.
RS232/C port for connection to printer.
Packaging: 410 x 375 x 180 mm size - approximate weight of 5,1 kg.
Master Pack: 2 x (410 x 375 x 180) mm size - 2 x approximate weight of 5,1 kg.
Upon request:
- ACCREDIA calibration with issuing of relative certificate;
- 3000e + 3000e dual interval CE-M approval.

FUNCTIONS

Price computing:
- change of unit price: €/kg - €/100g;
- entry of unit price;
- amount totalisation (with optional printer);
- calculation of the change;
- 105 PLU memories (5 from direct keys);
Zeroing;
Zero tracking;
Semi-automatic tare;
Digital calibration;
Auto switch-off;
Backlight command;
Low battery warning.

DOWNLOAD

ASB-ASG-NPS_stampe_DE_EN_ES_FR_IT.pdf

ASG-ASGP_1.007_13.03_EN_DE_FR_IT.pdf

Available versions

Code	Max (kg)	d (g)	2R (g)*
ASGP15	6/15	2/5	2/5
ASGP30	15/30	5/10	5/10

(*) CE-M divisions are obtainable only with the relative options.

	Code	Description
	CT4	ISO 17025 calibration certificate from 6 to 60 kg. For precision and industrial scales, crane scales.

Options only available at time of scale's order

	Code	Description
	ECEMI2	CE-M 3000e approval
	ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.
	OBTPRSH	ABS thermal printer for Scale House products (to be combined with specific cable for each scale). 58 mm paper width; 50 mm roll diameter; power supply through built-in 110-240 Vac power adapter.

Spare parts

	Code	Description
	SHAL14	12V 500mA power supplier (EU).
	14DFWBA	Lead battery, 6V 4.5Ah. ATTENTION: for the purchase of the entire INSTAPLUGBK extractable rechargeable battery please refer directly to the TPWLK, TPWP or TPWTS pallet truck data sheet.
	15ASGO	Keyboard overlay.
	846106	STAINLESS STEEL loading plate.
	15ASBF	Adjustable foot.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
