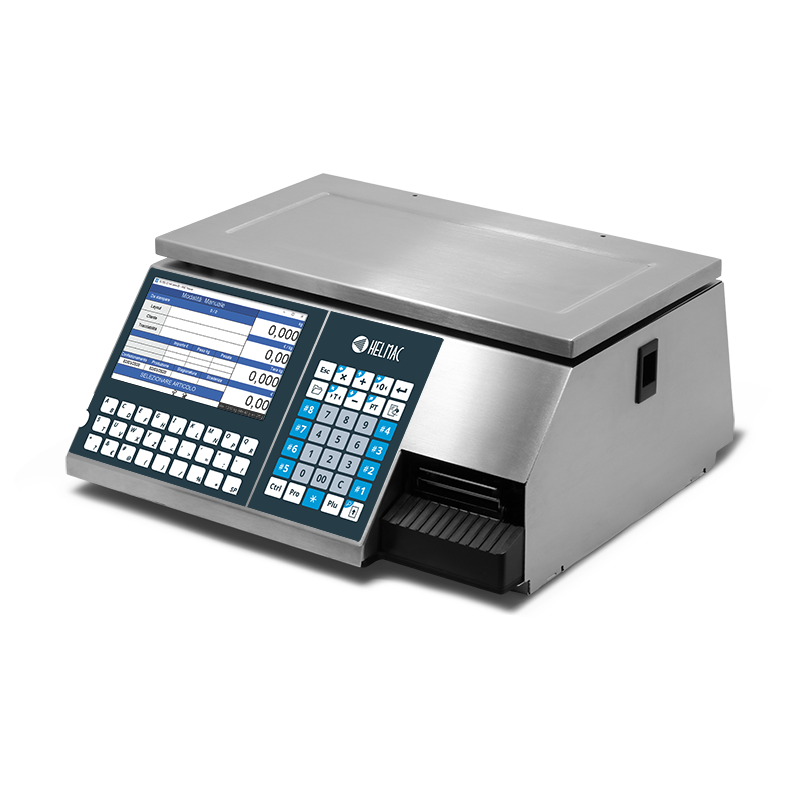

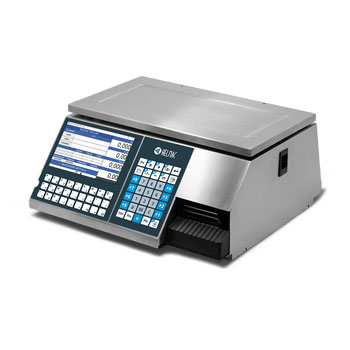

GP4 PLUS SERIES SUPERMARKET SCALES WITH COLOR DISPLAY

	GP4 PLUS SERIES SUPERMARKET SCALES WITH COLOR DISPLAY

Bench price computing scales with stainless steel structure and dual waterproof keyboard. Suitable for labelling pre-packaged products.

MAIN FEATURES

Dual display (operator and customer side) 7-inch TFT, LED backlit, Resolution 800 x 480 pixels.
Dual waterproof keyboard consisting of 27 multi-function membrane keys easily legible thanks to the special side pocket and 35 mechanic keys protected with adhesive screen printing. 8 direct operators, 99 totals. PC-based operating system.
Thermal labeller with 8dots/mm resolution, ideal for labelling pre-packaged products.
2" or 3" printer.
Maximum speed 150 mm/s.
Max. roll width 80mm, outer diameter 120mm.

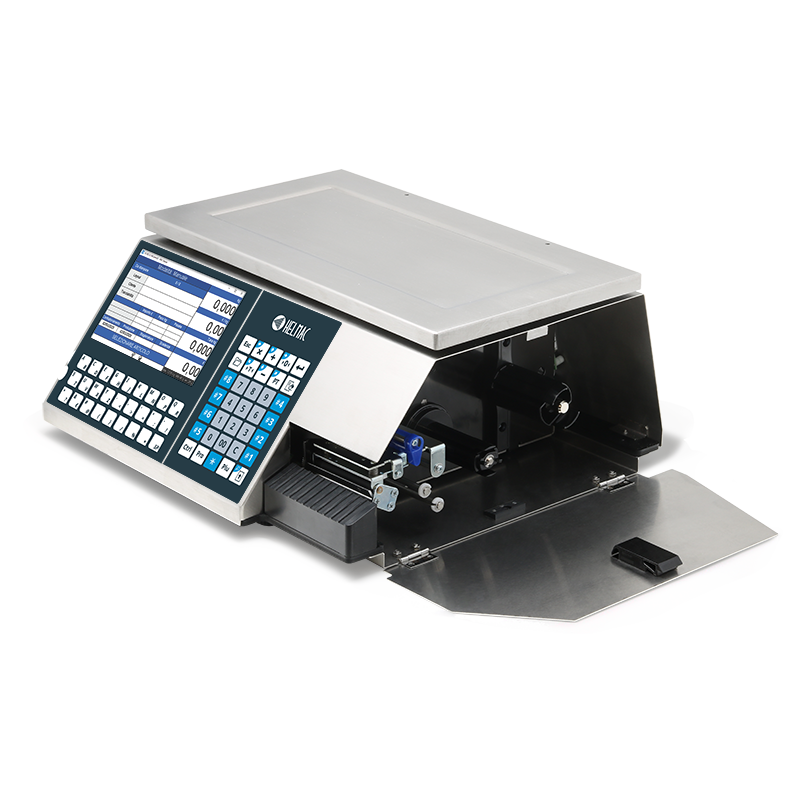

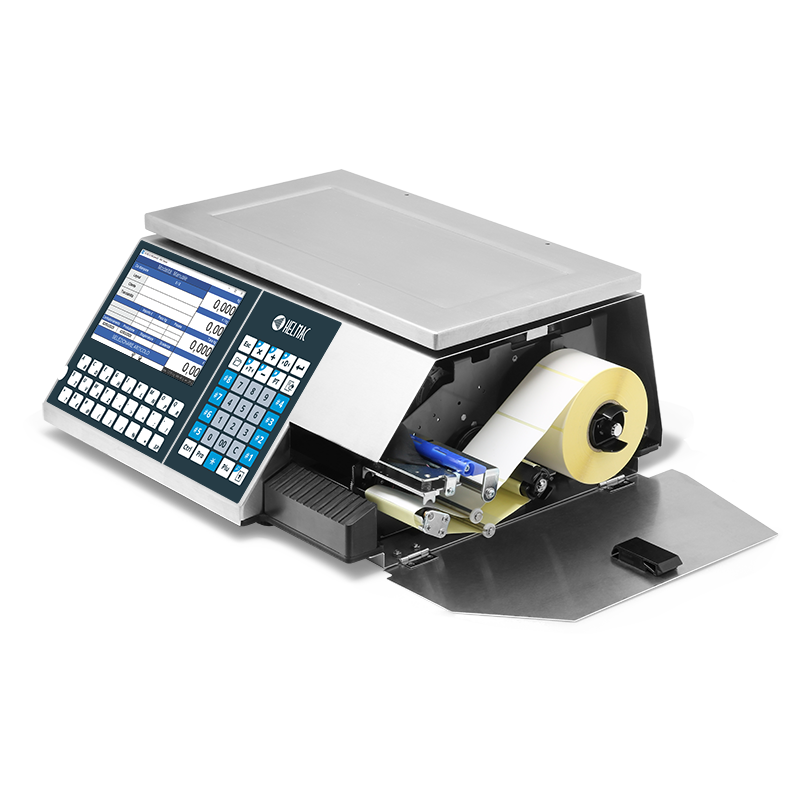

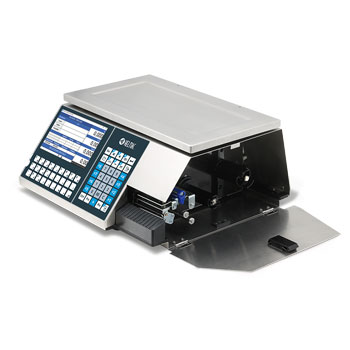

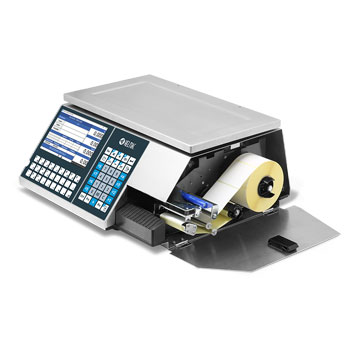

Easy roll replacement, by means of a door and an extractable trolley on guides to facilitate paper change.
409x235mm(WxW) stainless steel plate.
230Vac power supply.

Working mode: receipt, labeling and single item.
Sales statistics (also with graphics): operators, timetables, groups, PLUs and traceability.
Time-limited advertising management with videos and images.
Queue-management system connectable to DG-Shop monitors.
Management of limited time offers or customer promotions that can be linked to ESL.
Printing and management of allergens and nutritional info.
EAN-13, GS1-128 barcodes, dynamic QR Codes printing.
Activation of different pricelists during the sale.
Change of label and logo layout during the sale.
Logos management and firmware maintenance with HLL PRO (Helmac Label Loader) software, downloadable from the site.
New features to ensure maximum work efficiency.
Our scales are compatible with the main back-office systems.

DOWNLOAD

Retail scales: AVAILABLE VERSIONS

	Code	Description
	GP4PLUS1230-1	GP4 PLUS scale, capacity 12/30 kg, division 2/5 g, with 410x230mm plate and stainless steel body, double TFT 7" colour display, waterproof keyboard with 27 multi-function membrane keys and 35 mechanical keys. Printer 3".
	GP4PLUS2-4	GP4 PLUS scale, capacity 12/30 kg, division 2/5 g, with 410x230mm plate and stainless steel body, double TFT 7" colour display, waterproof keyboard with 27 multi-function membrane keys and 35 mechanical keys. Printer 2".

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Expandable materials

	Code	Description
	880086	20 rolls of 400 thermal adhesive labels 80 x 120 mm for labeller, hole 40 mm.
	880087	25 rolls of 800 thermal adhesive labels 80 x 60 mm for labeller, 40 mm hole.
	880088	25 rolls of 500 thermal adhesive labels 80 x 100 mm for labeller, 40 mm hole.

Connection cables

	Code	Description
	RTR802	Mini router for Wi-Fi connection between scales.

Counting scales: ADDITIONAL PLATFORM

	Code	Description
	810171	Predisposition for connection at external platform
