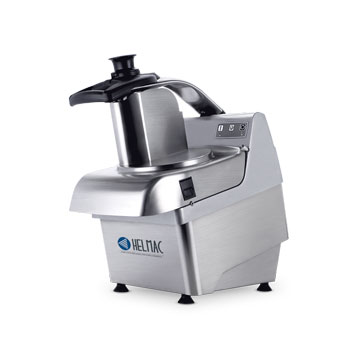

TVH Vegetable cutter in stainless steel


  TVH Vegetable cutter in stainless steel

Vegetable cutter with modern structure in stainless steel, perfect for hotels, restaurants and canteens, designed to cut vegetables, beans and cheese. The wide selection of discs enables any type of cut from the simplest to the most creative. New practical and elegant design, equipped with a sturdy and powerful ventilated asynchronous motor, belt drive, 24 v controls, digital keyboard and protection micro switch.

TECHNICAL FEATURES

  • Hourly output: 250 - 450 kg/h
  • Power: 0,58 kW (0,8 HP)
  • Power supply: Three-phase - 400 V / 50 Hz Single-phase - 230 V / 50 Hz
  • Weight: 20 kg
  • Dimensions (wxdxh): 490x280x530 mm
Available versions
 CodeDescription
TVH-MF TVH Single-phase vegetable cutter
TVH-TF TVH Three-phase vegetable cutter
 CodeDescription
TVH_DX X series discs to cut slices, adjustable from 1 to 8 mm
TVH_E1 E series discs to cut gently 1 mm slices
TVH_E2 E series discs to cut gently 2 mm slices
TVH_E3 E series discs to cut gently 3 mm slices
TVH_E4 E series discs to cut gently 4 mm slices
TVH_E5 E series discs to cut gently 5 mm slices
TVH_E6 E series discs to cut gently 6 mm slices
TVH_E8 E series discs to cut gently 8 mm slices
TVH_E10 E series discs to cut gently 10 mm slices
TVH_E14 E series discs to cut gently 14 mm slices
TVH_S1 S series discs to cut gently 1 mm slices
TVH_S2 S series discs to cut gently 2 mm slices
TVH_D8X8 D series discs to dice, to be coupled with E series
TVH_D10X10 D series discs to dice, to be coupled with E series
TVH_D12X12 D series discs to dice, to be coupled with E series
TVH_D16X16 D series discs to dice, to be coupled with E series
TVH_D20X20 D series discs to dice, to be coupled with E series
TVH_B6 B series discs to cut strips, to be coupled with the 6 mm E series
TVH_B8 B series discs to cut strips, to be coupled with the 8 mm E series
TVH_B10 B series discs to cut strips, to be coupled with the 10 mm E series
TVH_H4 H series discs to cut 4 mm curved strips
TVH_H6 H series discs to cut 6 mm curved strips
TVH_H8 H series discs to cut 8 mm curved strips
TVH_H10 H series discs to cut 10 mm curved strips
TVH_Z2 Z series discs for 2 mm shredding and grating
TVH_Z3 Z series discs for 3 mm shredding and grating
TVH_Z4 Z series discs for 4 mm shredding and grating
TVH_Z7 Z series discs for 7 mm shredding and grating
TVH_V V series discs to shred and grate

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
