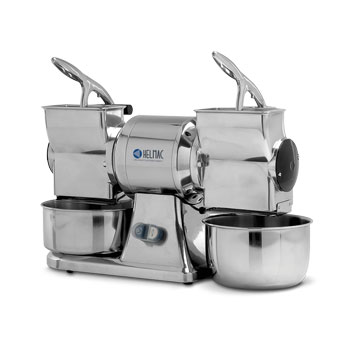

GDH Professional grater

	GDH Professional grater

Ideal for food industry professionals since it enables simultaneous use of the two graters for different products, guaranteeing excellent performance for all activities aiming at a high quality in food preparation. Equipped with stainless steel protective grid, to prevent contact with moving parts. Ventilated motor with thermal protection. The switch is protected by a latex rubber membrane.

TECHNICAL FEATURES

Hourly output: 70 kg/h
Revolutions per minute: 1400 rpm
Opening dimensions (wxd): 140x80 mm
Power: 0,75 kW (1 HP)
Weight: 21 kg
Dimensions (wxdxh): 540x220x380 mm
Power supply: Three-phase - 400 V / 50 Hz Single-phase - 230 V / 50 Hz

DOWNLOAD

TECH_DRAWING_GDH.pdf

Available versions

	Code	Description
	GDH-MF	GDH Single-phase professional grater
	GDH-TF	GDH Three-phase professional grater

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
