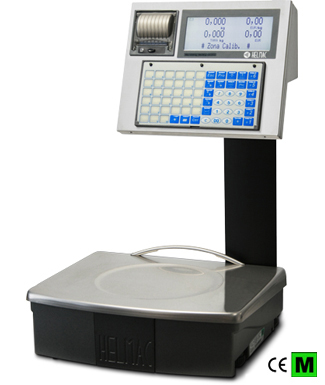

GPE SERIES "MI" PRICE LABELLING SCALES

GPEMI: price labelling scales with stainless steel panel Capacity kg 6 / 15 15 / 30 12 / 30 Division g 2 / 5 5 / 10 2 / 5  OPTIONS AND ACCESSORIES Bowl-shaped pan. Radio Module. Cash register drawer opening. 12/24Vdc power supply for itinerant sales use. Column with customised height. Bracket for mounting the Lynx cash register.

Sturdy, accurate and reliable scales. Control panel in stainless steel with display, keyboard and printer, mounted column. Ideals for price labelling applications.  FEATURES Dual alphanumeric backlit white LCD display, operator and client side. The backlight function can be removed. Fast, accurate, and waterproof keyboard, with 66 keys including 33 functional keys and 33 easily configurable for PLU's, TLU's and 6 additional operators. Thermal printer speed of 80mm/sec for normal thermal paper or for Linerless adhesive with paper 57mm wide, and outer diameter max. 50mm. Print width of up to 48mm. System for easily loading the paper. Die-cast aluminium base, stainless steel structure. Stainless steel plate, 370x310mm (LxW) size. 230Vac power supply with long-lasting built-in rechargeable battery.  FUNCTIONS Database of 1000 PLU's, 66 with direct access. 10 PLU groups. 100 ingredient lists. 4 VAT rates. 10 advertisement messages. Queue-system. 8 payment modes. 2 kinds of short and long term totals. 6 / 12 operators. 3 programmable password levels. Single item. PLU priority. Weighing tare, operator tare, PLU's tare, pre-stored and configurable tare. Reopening of the last tickets, discounts, rebates, cash management, customer management. Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the website.  I/O SECTIONS 2 RS232 interfaces for connection to PC, modem, scanner, cash register. RS485 interface for connection with up to n° 4 GPE scales in a local network. Radio module (optional) for connecting up to 4 scales in the network.

	Code	Description
	715520	GPEMI scale, 6/15kg capacity, 2/5g division, with stainless steel structure and 370x310mm plate, dual backlit LCD display and thermal printer mounted on column, 66-key waterproof keyboard.
	715320	GPEMI scale, 15/30kg capacity, 5/10g division, with stainless steel structure and 370x310mm plate, dual backlit LCD display and thermal printer mounted on column, 66-key waterproof keyboard.
	715120	GPEMI scale, 12/30kg capacity, 2/5g division, with stainless steel structure and 370x310mm plate, dual backlit LCD display and thermal printer mounted on column, 66-key waterproof keyboard.

	Code	Description

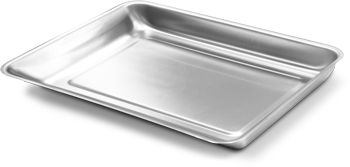

	810000	Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
	810040	Radio module for connection up to 4 scales (factory fitted).
	810170	Opening of cash register drawer.
	810116	Connection for 12/24Vdc power supply for itinerant sales.
	810117	1,5 m connecting cable for 12/24Vdc power supply for itinerant sales.
	810190	Column with custom-made height.
	810232	Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.

	Code	Description
	880043	100 rolls of thermal paper, 57mm x 30m size, 50mm outer diameter, 12mm diameter of central hole.
	880042	60 rolls of Linerless thermal sticker paper, 57mm x 21m size, 49mm outer diameter, 12mm diameter central hole.
