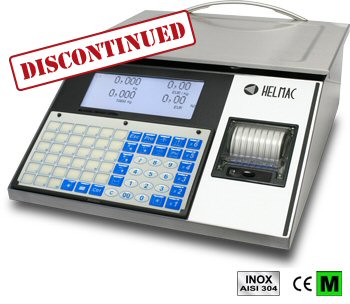

GPE SERIES “L” COMPACT RETAIL SCALES

GPEL: compact retail scales Capacity kg 6 / 15 15 / 30 12 / 30 Division g 2 / 5 5 / 10 2 / 5  OPTIONS AND ACCESSORIES Bowl-shaped pan. Radio Module. Cash register drawer opening. 12/24 Vdc power supply for itinerant sales use.

Compact and sturdy scales, made in stainless steel. Easy to carry and with a long battery life that make them ideal for itinerant sales.  FEATURES Dual alphanumeric backlit white LCD display, operator and client side. The backlight function can be removed. Fast, accurate, and waterproof keyboard, with 66 keys including 33 functional keys and 33 easily configurable for PLU's, TLU's and 6 additional operators. Thermal printer speed of 80mm/sec for normal thermal paper or for Linerless adhesive with paper 57mm wide, and outer diameter max. 50mm. Print width of up to 48mm. System for easily loading the paper. Stainless steel structure. Stainless steel plate, 370x310mm (LxW) size. 230Vac power supply with long-lasting built-in rechargeable battery.  FUNCTIONS Database of 1000 PLU's, 66 with direct access. 10 PLU groups. 100 ingredient lists. 4 VAT rates. 10 advertisement messages. Queue-system. 8 payment modes. 2 kinds of short and long term totals 6/12 operators. 3 programmable password levels. Single item. PLU priority. Weighing tare, operator tare, PLU's tare, pre-stored and configurable tare. Reopening of the last tickets, discounts, rebates, cash management, customer management. Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the website.  I/O SECTIONS 2 RS232 interfaces for connection to PC, modem, scanner, cash register. RS485 interface for connection with up to n° 4 GPE scales in a local network. Radio module (optional) for connecting up to 4 scales in the network.

	Code	Description
	720520	GPEL scale, 6/15kg capacity, 2/5g division, with stainless steel structure and 360x250mm plate, dual backlit LCD display, 66-key keyboard and thermal printer.
	720320	GPEL scale, 15/30kg capacity, 5/10g division, with stainless steel structure and 360x250mm plate, dual backlit LCD display, 66-key keyboard and thermal printer.
	720120	GPEL scale, 12/30kg capacity, 2/5g division, with stainless steel structure and 360x250mm plate, dual backlit LCD display, 66-key keyboard and thermal printer.

	Code	Description
	810171	Male connector installed on the rear of the scale for connection to external platform.
	810010	Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.
	810040	Radio module for connection up to 4 scales (factory fitted).
	810170	Opening of cash register drawer.
	810116	Connection for 12/24Vdc power supply for itinerant sales.
	810117	1,5 m connecting cable for 12/24Vdc power supply for itinerant sales.
	810232	Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.

	Code	Description
	880043	100 rolls of thermal paper, 57mm x 30m size, 50mm outer diameter, 12mm diameter of central hole.
	880042	60 rolls of Linerless thermal sticker paper, 57mm x 21m size, 49mm outer diameter, 12mm diameter central hole.
