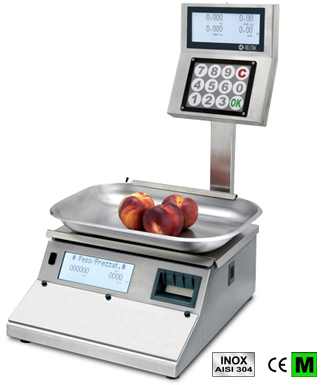

GP 4 "LS12" SERIES 12-key self-selection RETAIL SCALE

	GP 4 "LS12" SERIES 12-key self-selection RETAIL SCALE

Capacity kg	6 / 15	12 / 30
Division g	2 / 5	2 / 5

I/O SECTIONS

2 RS232 interfaces for connection to: PC, modem, scanner, cash register.
RS485 interface for connection with up to 16 GP series’ scales in a network.
Radio module (optional) for connection to more than 4 scales in the local network.
Ethernet connection (optional).

Extremely easy to use self-service scale. The keyboard with 12 large keys allows to quickly select the product, by typing the PLU code.

MAIN FEATURES

Dual alphanumeric white backlit LCD display. Very clear and visible.
12-key mechanical keyboard for quickly selecting the product, hidden 80-key mechanical keyboard for eventually managing the programming or for using it not in self-service mode.
150mm/sec labeller, 8dots/mm resolution.
Print width: up to 55mm.
Paper roll width of up to 59,5mm, external diameter of 80mm.
Extractable printer unit to make it easier to change the paper.
Stainless steel base.
Stainless steel plate, 370x310mm (LxW) size.
230Vac power supply, complete with built-in rechargeable 24Vdc buffer batteries.

FUNCTIONS

Selectable operating modes: ticket, pricing-labelling, single article or self-service.
20 operators.
Database of 3000 PLU’s, 80 with direct access.
50 PLU groups.
8 preset tares and memory for 20 active tares selectable by the operators.
300 ingredient lists.
50 product traceablities.
4 VAT rates with a strips function.
10 advertisement messages.
8 payment modes.
3 programmable password levels.
Storage and reopening of daily tickets.
Cancellations, discounts, special offers, hourly sales reports, customer management.
Totals for operators, PLUs, article groups, VAT rates, and short and long term payment types.
PLU priority work mode.
Prints logos, EAN13 and EAN8 bar codes, price tags with the total, lot, ice.
Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the web site.

OPTIONS AND ACCESSORIES

Available Versions

	Code	Description
	746530	GP4LS12 scale, 6/15 kg capacity, 2/5 g division, with stainless steel structure and 370x260 mm plate, dual backlit LCD display, 12-key mechanical keyboard and labeller.
	746130	GP4LS12 scale, 12/30 kg capacity, 2/5 g division, with stainless steel structure and 370x260 mm plate, dual backlit LCD display, 12-key mechanical keyboard and labeller.

Option (to be specified when ordering the scale)

	Code	Description
	810010	Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.
	810040	Radio module for connection up to 4 scales (factory fitted).
	810050	Ethernet interface kit for connecting the scales to the PC.
	810170	Opening of cash register drawer.
	810231	Custom-made labels (logo insertion, setting of label, header, closing messages, etc). Note: the customisation is possible after an analysis of the Helmac technical staff.
	810233	Configuration of a scales' network. Note: the customisation is possible after an analysis of the Helmac technical staff.

Expendable materials

	Code	Description
	880034	24 rolls of 1000 white labels, 58 x 53 mm size.
	880035	32 rolls of 1000 white labels, 58 x 43 mm size.
	880036	24 rolls of 900 white labels, 58 x 60 mm size.
	880037	24 rolls of 750 white labels, 58 x 74 mm size.
