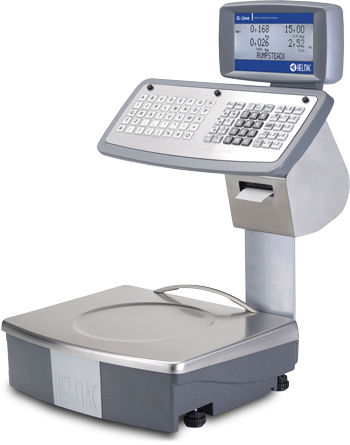

GP1 SERIES "TC" RETAIL SCALE equipped with a 150mm/sec printer and paper cutter

Capacity kg 6 / 15 15 / 30 12 / 30 Division g 2 / 5 5 / 10 2 / 5  OPTIONS AND ACCESSORIES Bowl-shaped pan. Radio Module. Ethernet. Cash register drawer opening. Column with customised height.

Ideal scale for medium and large businesses; very resistant, made with high quality materials, accurate and reliable. Equipped with printer along with paper cutter, and featured by high speed printing (up to 150mm/sec). Its high connectivity allows users to network up to 16 scales.  MAIN FEATURES Dual alphanumeric backlit white LCD display, both on operator side and client side. Fast, accurate, and mechanical keyboard, with 80 keys of which 40 PLU's with direct access (80 with dual access) and 40 functional keys. Thermal printer/labeller with automatic paper cutter (usable with thermal paper). Print speed up to 150mm/sec, high quality printing, 8 dots/mm resolution. Print width up to 55 mm. Paper roll width of up to 59,5 mm, external diameter of 80 mm. Extractable printer unit to make it easier to change the paper. Die-cast aluminium base. Stainless steel and polymer structure. Stainless steel plate, 370x310mm (LxW) size. 230Vac power supply, complete with built-in rechargeable 24Vdc buffer batteries.  FUNCTIONS Selectable operating modes: ticket, pricing-labelling, single article or self-service. 20 operators. Database of 3000 PLU’s, 80 with direct access. 50 PLU groups. 8 preset tares and memory for 20 active tares selectable by the operators. 300 ingredient lists. 50 product traceablities. 4 VAT rates with a strips function. 10 advertisement messages. Queue-system. 8 payment modes. 3 programmable password levels. Storage and reopening of daily tickets. Cancellations, discounts, special offers, hourly sales reports, customer management. Totals for operators, PLUs, article groups, VAT rates, and short and long term payment types. PLU priority work mode. Prints logos, EAN13 and EAN8 bar codes, price tags with the total, lot, ice. Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the web site.  I/O SECTIONS 2 RS232 interfaces for connection to: PC, modem, scanner, cash register. RS485 interface for connection with up to 16 GP series’ scales in a network. Radio module (optional) for connection to more than 4 scales in the local network. Ethernet connection (optional).

	Code	Description
	736510	GP1TC scale, 6/15 kg capacity, 2/5 g division, with stainless steel structure and 370x310 mm plate, dual backlit LCD display on column, 80-key mechanical keyboard and thermal printer with paper cutter.
	736310	GP1TC scale, 15/30 kg capacity, 5/10 g division, with stainless steel structure and 370x310 mm plate, dual backlit LCD display on column, 80-key mechanical keyboard and thermal printer with paper cutter.
	736110	GP1TC scale, 12/30 kg capacity, 2/5 g division, with stainless steel structure and 370x310 mm plate, dual backlit LCD display on column, 80-key mechanical keyboard and thermal printer with paper cutter.

	Code	Description
	810075	Blue backlit LCD display.
	810000	Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
	810040	Radio module for connection up to 4 scales (factory fitted).
	810050	Ethernet interface kit for connecting the scales to the PC.
	810170	Opening of cash register drawer.
	810190	Column with custom-made height.
	810231	Custom-made labels (logo insertion, setting of label, header, closing messages, etc). Note: the customisation is possible after an analysis of the Helmac technical staff.
	810233	Configuration of a scales' network. Note: the customisation is possible after an analysis of the Helmac technical staff.

	Code	Description
	880032	36 rolls of thermal paper, 59 mm x 80 m size, 80 mm outer diameter, 25 mm diameter of central hole.
	880033	40 rolls of thermal paper, 59 mm x 30 m size, 80 mm outer diameter, 25 mm diameter of central hole.
